01 Product Description
This solar panel mounting system is a highly anti-corrosion mounting structure for ground solar power project with its aluminium alloy 6005 and 304 stainless steel material .

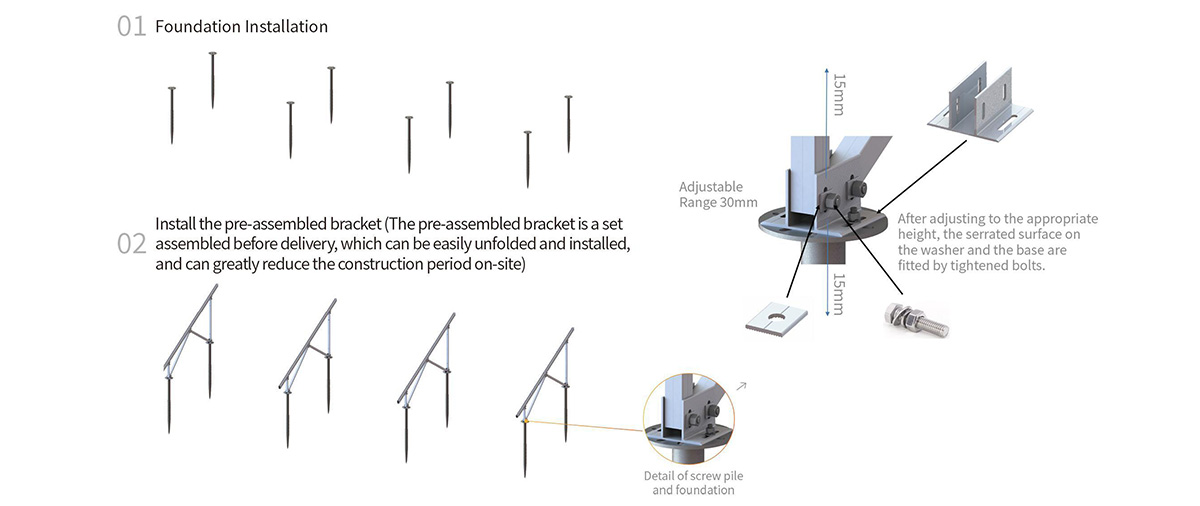

The beams and supports will be pre-assembled on the factory before delivery, to save working time on site. The special base plate design ensures adjustable range on height and front-back direction, to adapt installation site.

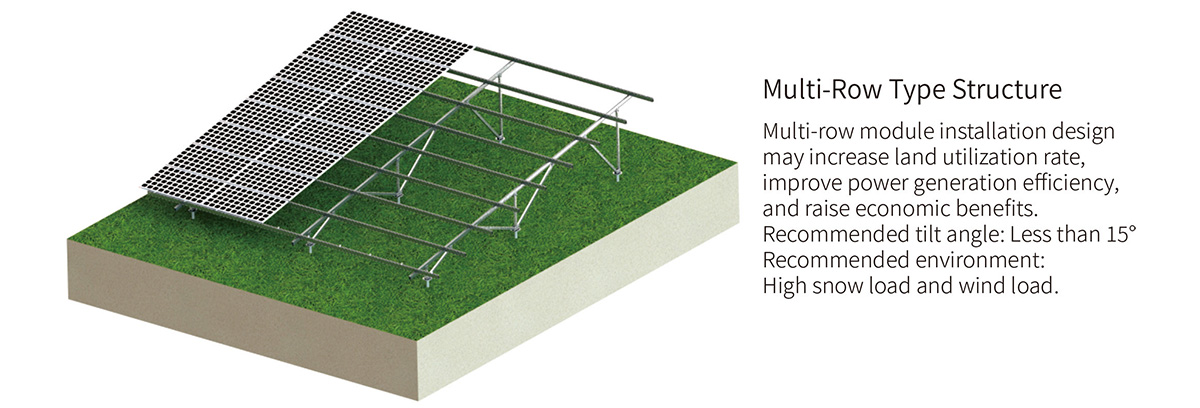

Different structure type will be chosen according to site conditions and load requirements.

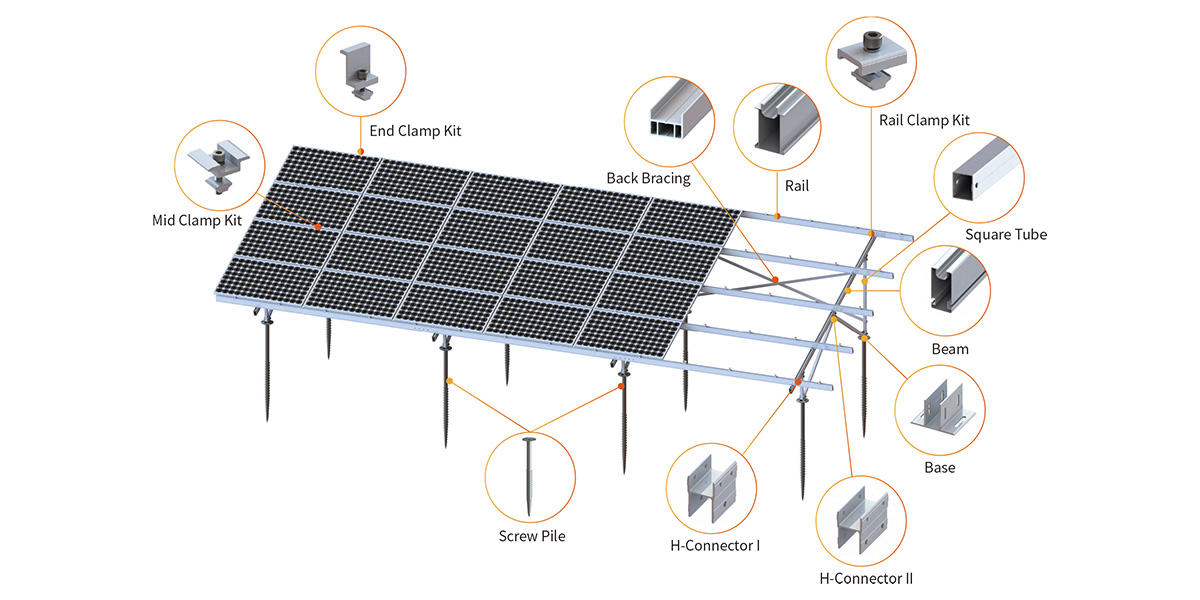

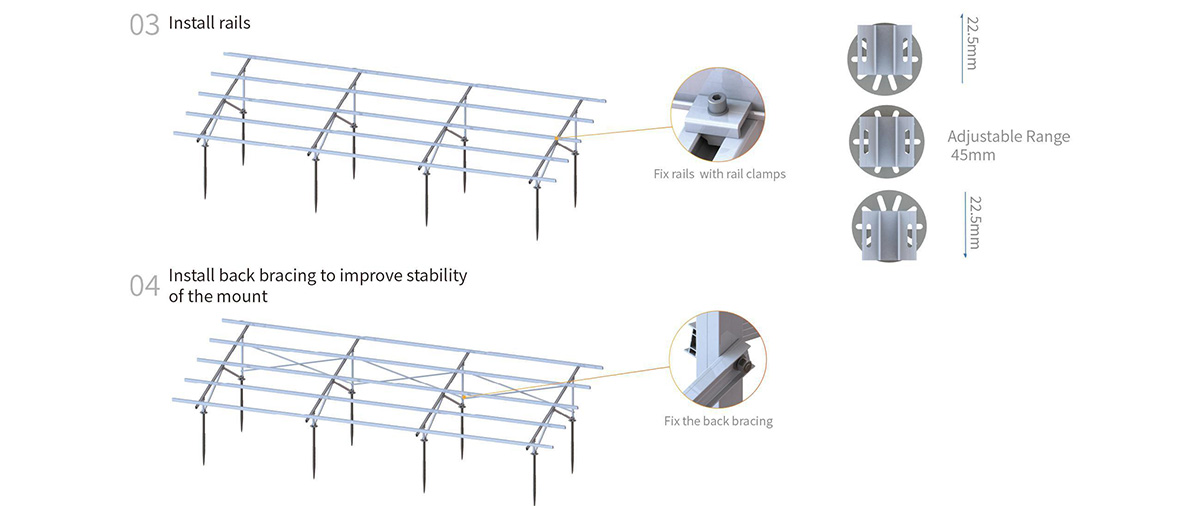

02 Accessory schematic diagram

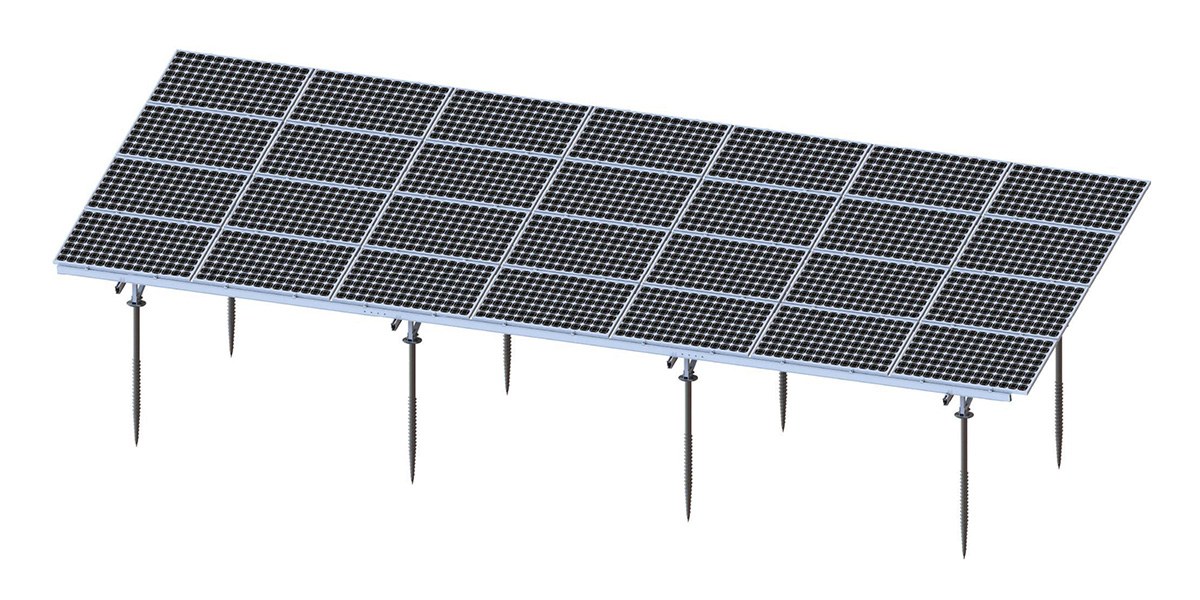

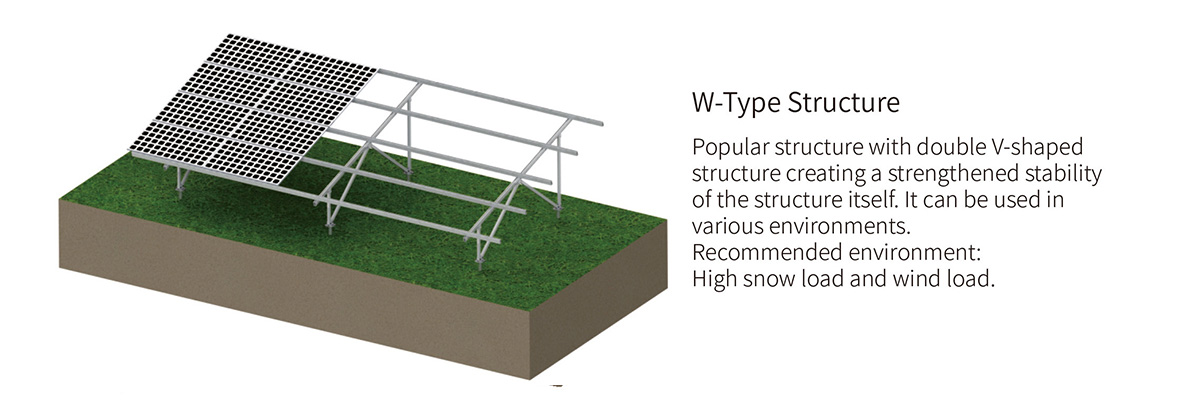

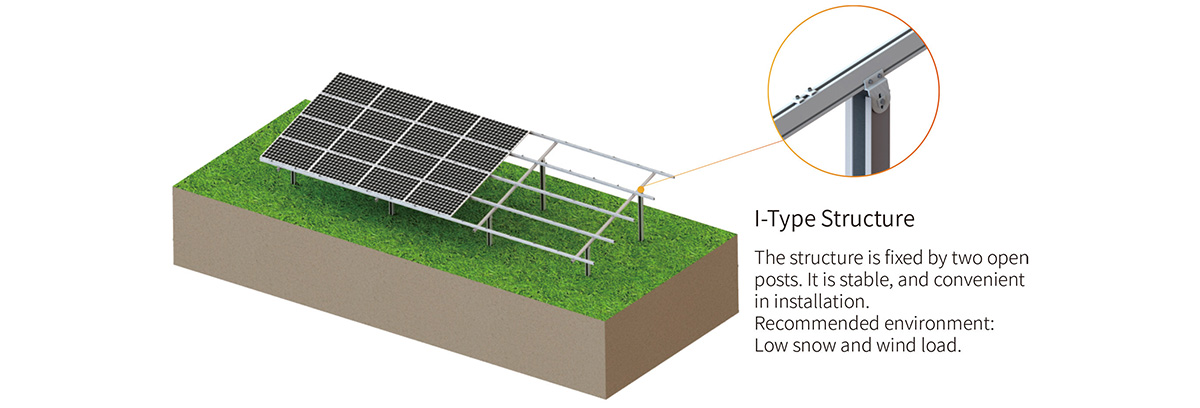

03 Structure
05 Core Engineering Parameters
| Key indicators | Parameter details |
| Applicable roof | Ground |
| Wind load | 60m/s |
| Snow load | 1.4 kN/m² |

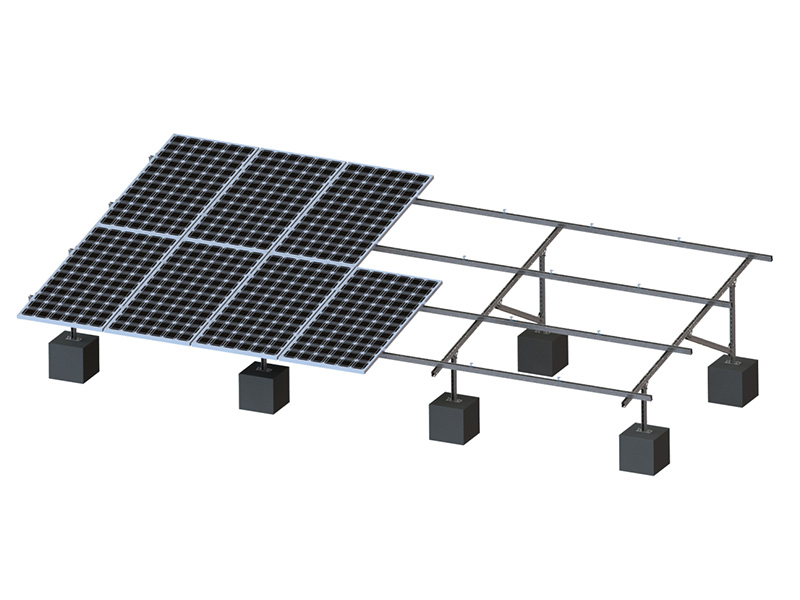

| Foundation | Screw Pile / Concrete |
| Main material | GB50009-2012, EN1990:2002, ASCE7-05, AS/NZS1170, JIS C8955:2017,GB50017-2017 |
| standard | Anodized Aluminum AL6005-T5, Hot Dip Galvanized Steel, Zn-Al-Mg Pre-Coated Steel, Stainless Steel SUS304 |
| Warranty | 10 Years Warranty |
06 Industry Application Scenarios
✔ Ground-mounted photovoltaic power stations in plains/hills
✔ Desert/tidal flat photovoltaic farm
✔ Utility-scale Photovoltaic park
07 Professional technical services
▶ Solution design and structural analysis:
Provide customized solution drawing, load calculation reports (including wind load/snow load/seismic force analysis) or assembly drawing.
▶ On-site survey:
Engineers conduct on-site investigations ground conditions with local soil investigation professionals.
▶ Installation training and guidance:
Provide installation videos, installation manuals and on-site installation guidance to ensure safe and complete installation.
08 Technical verification system
Provide standardized installation videos, operation manuals and on-site technical guidance to ensure zero error in construction.
07 Technical verification system
▶ Extreme environmental testing
• Pass the low-temperature impact at -40℃
• Salt spray corrosion (3,000 + hours)
• Extreme tests such as 60m/s hurricane simulation.
▶ Third-party certification
• We hold wind pressure, snow pressure, seismic resistance and material certification certificates issued by TUV, SGS and other institutions to ensure the compliance of global projects.
09 Packages & Shipping
International standard packaging; Goods are dispatched from Shanghai, Ningbo, Tianjin, Xiamen and Shenzhen ports in China.

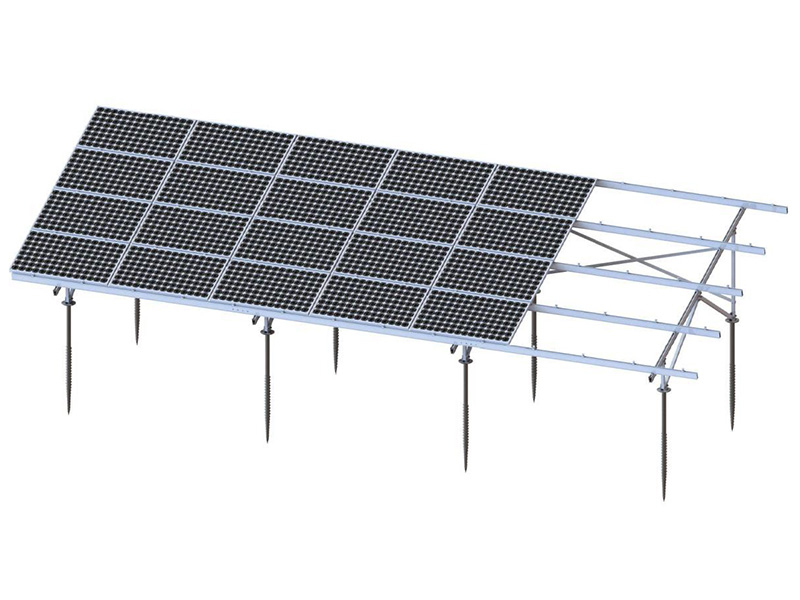

10 Project Case

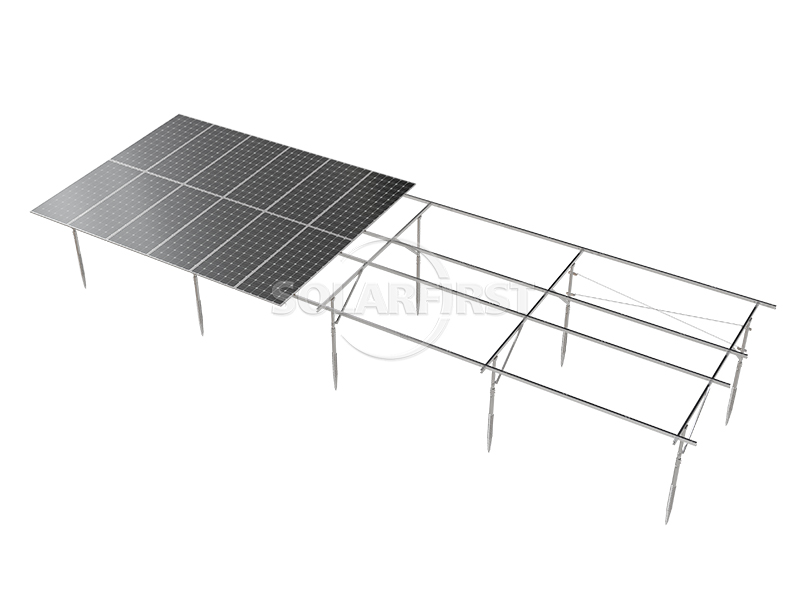

Solar First's ground-mounted solar system is an east-west adjustable, pre-assembled bracket solution designed for large commercial and utility ground-mounted solar installations. It utilizes a durable helical pile foundation, ensuring rapid deployment, robust structural support, and long-term corrosion resistance.
